Arlington Heights Bathroom Remodel with Tub to Curbless Shower Conversion
Delta Remodels completed this bathroom remodeling project in Arlington Heights, Illinois, as a design-build job: design, material selections, permits, construction and the final walkthrough handled by one team on one contract. This Arlington Heights bathroom remodel replaced a large built-in tub with a curbless walk-in shower, tiled bench, ceiling-mounted rain head, thermostatic controls and a linear drain set flush with the floor. The room was updated around the existing arched window and vaulted ceiling.
Opening the wet area without stripping away the room's character
The concept of this bathroom was to completely update its main elements and make the room feel more spacious. The existing bathroom already had generous square footage, but the built-in tub and raised platform occupied too much of the wet area.
The remodel changed how that space worked: the tub came out, the shower became the main bathing zone, storage was reorganized, and the older vanity, mirrors, tile and flooring were replaced.
Arlington Heights, IL
Full bathroom remodel
Arched window and vaulted ceiling
Bathroom remodeling
Same square footage. A much more usable bathroom

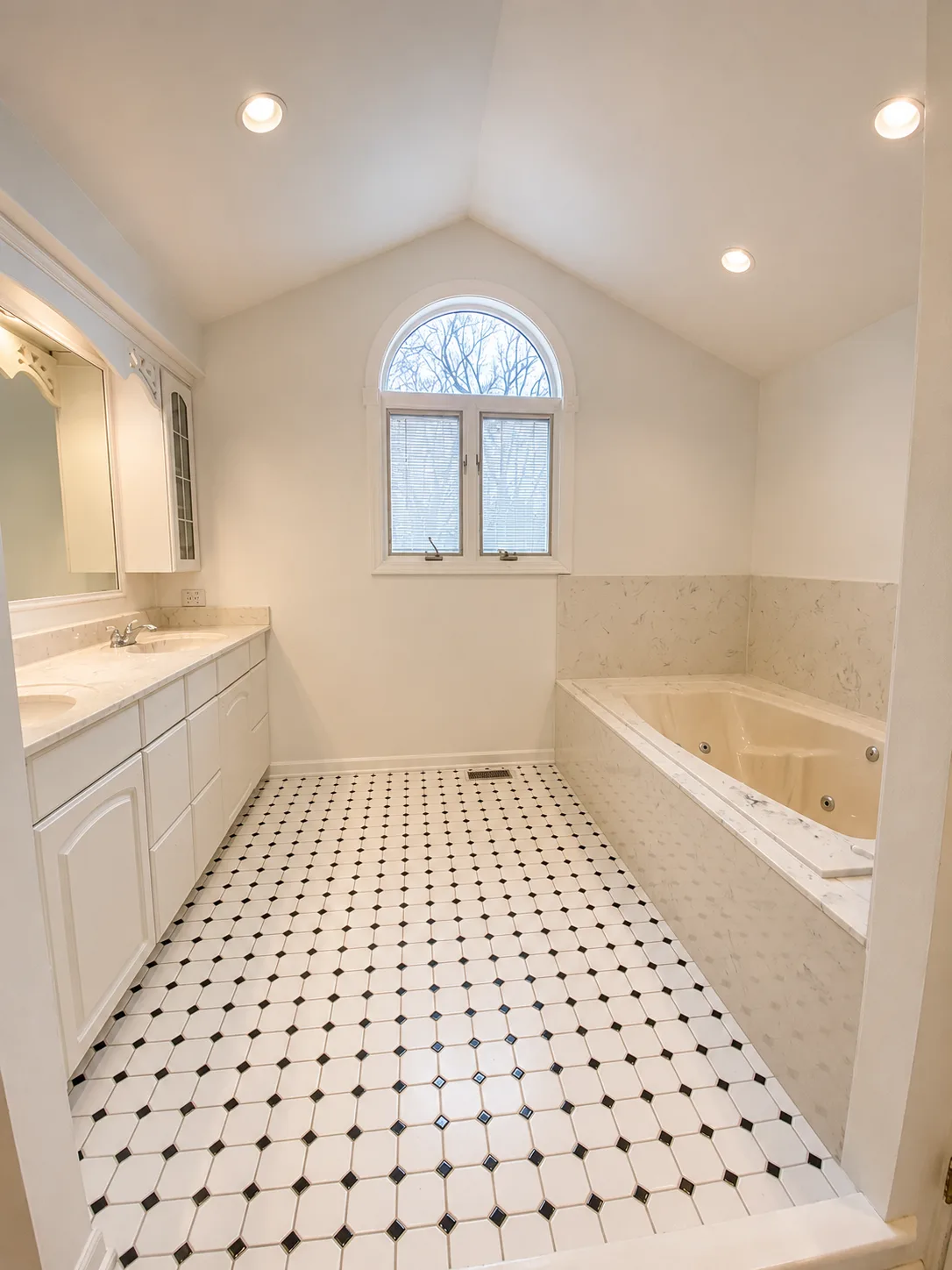

The original built-in tub dominated the wet area. After remodeling, that footprint became a wide curbless shower with a bench, rain head, thermostatic controls and linear drain. Before Built-in tub, raised platform, older tile, patterned flooring and light cabinetry. After Curbless walk-in shower with bench, rain head, thermostatic controls and updated finishes. Completed view · custom vanity, LED medicine cabinets and retained architectural details
Detail and finish photography
The details that make a curbless shower work
The visible change is the open shower. The important work is underneath it: floor height, drainage, waterproofing and tile layout all have to be resolved before finish material is ordered.
- 01
Recessing the Shower Floor
The shower floor has to sit lower than the main bathroom floor. In a framed floor, that can mean recessing the subfloor between the joists; another option is building the surrounding bathroom floor up to meet the shower. That decision has to be made before tile thickness and finished floor elevations are locked in. 02
- 02
Waterproofing Past the Opening
With no curb acting as a physical stop, the waterproofing membrane needs to continue beyond the shower opening into the transition area. The slope, membrane and drain connection all have to work together so water moves toward the drain instead of toward the rest of the bathroom. 03
- 03
Linear Drain + Tile Planning
The linear drain lets the shower floor pitch in one direction on a single plane. That matters when using larger-format tile because the tile can run across the floor without being cut into four pie-shaped sections around a center drain. Drain location and tile size should be decided together, before material is ordered. 04
- 04

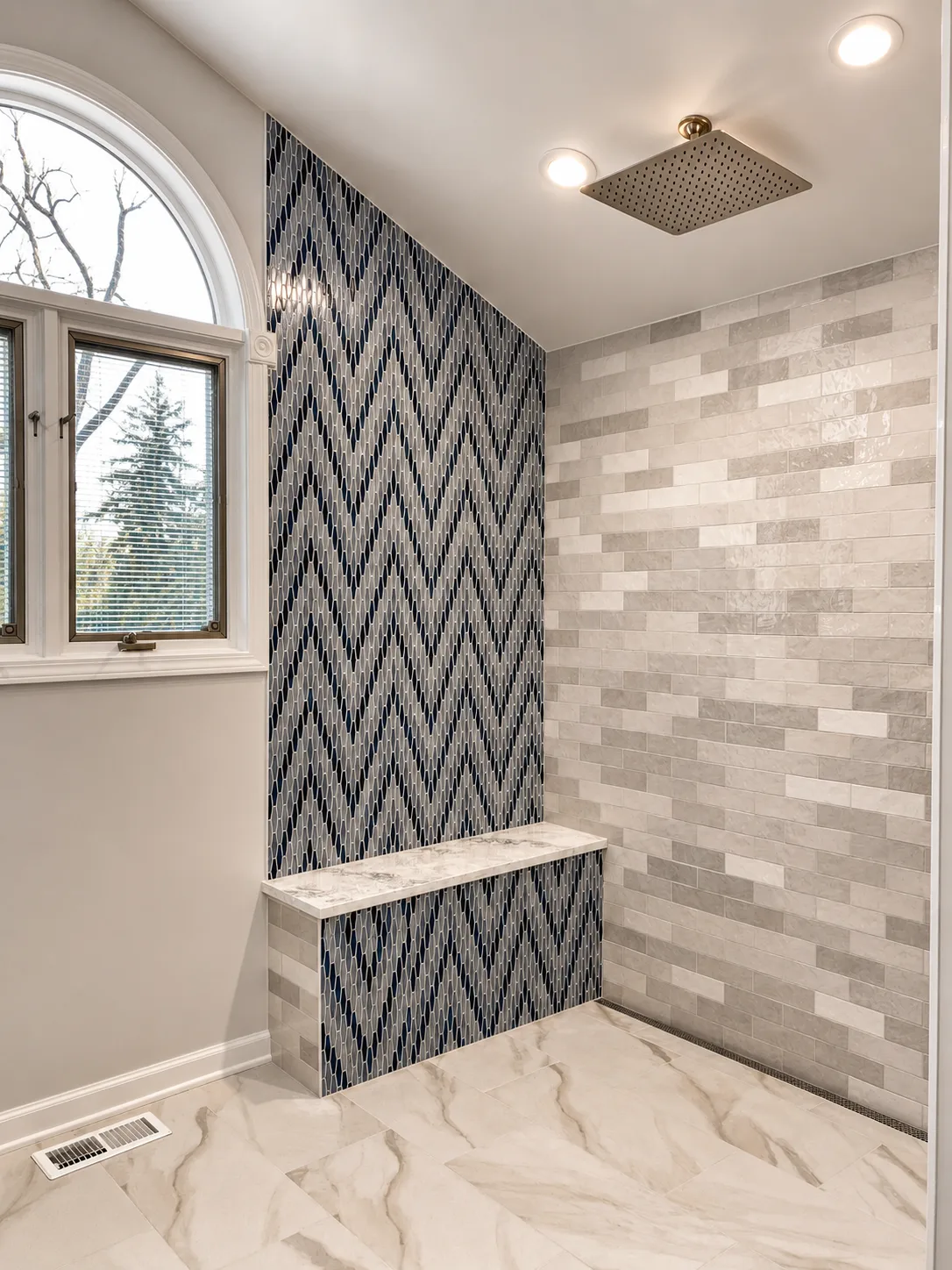

Bench, Rain Head & Thermostatic Controls
The tiled bench is framed into the shower rather than added later. Above it, the ceiling-mounted rain head keeps the wall cleaner, while the thermostatic valve holds the selected water temperature more consistently. 05
- 05

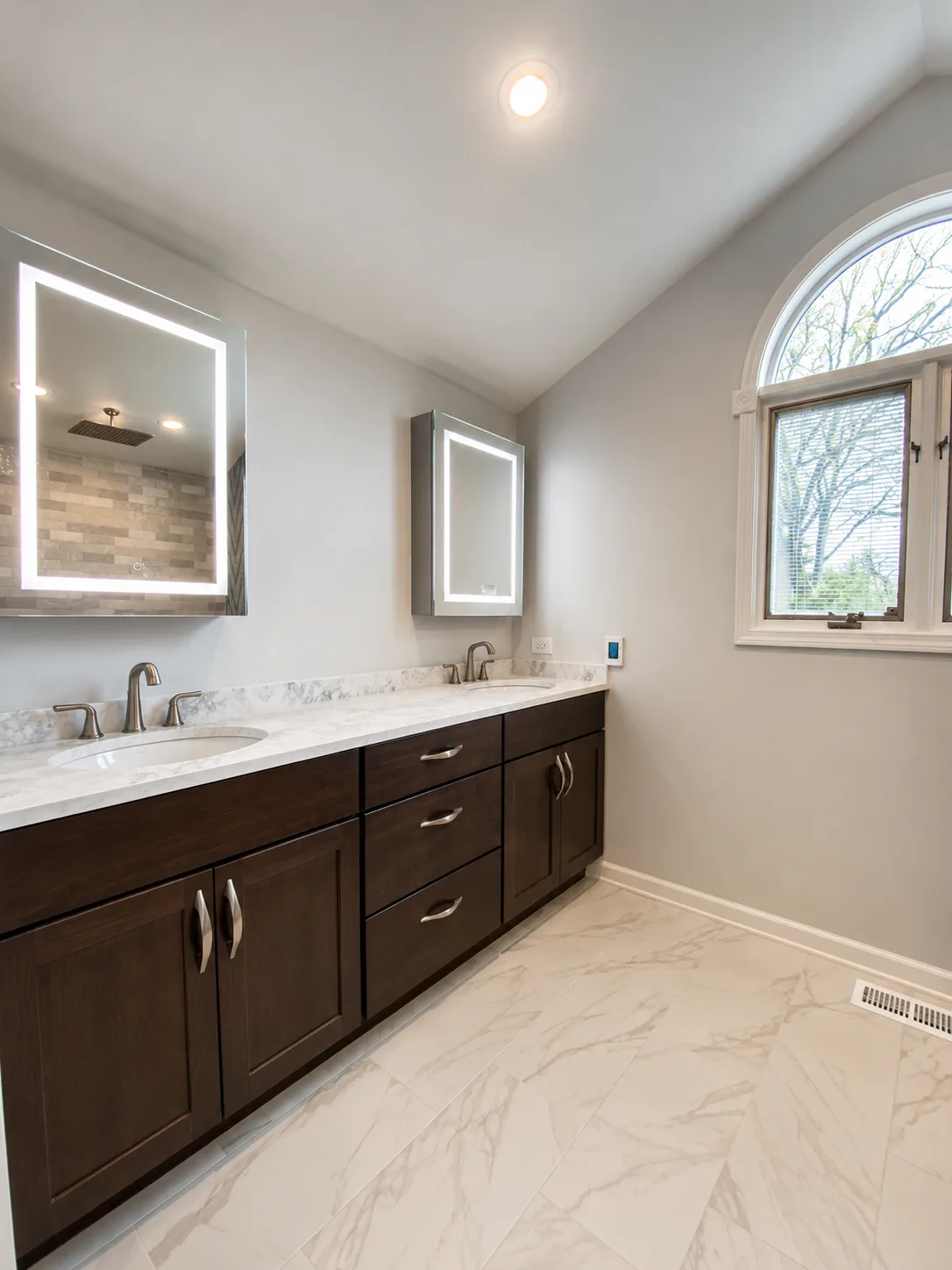

Vanity, LED Medicine Cabinets & What Stayed
The opposite wall was rebuilt with custom dark brown cabinetry and LED medicine cabinets for concealed storage and face-level lighting. The arched window and vaulted ceiling stayed; the new finishes were laid out around them rather than removing features that already worked.
Bathroom remodeling in Arlington Heights with the full room considered
Delta Remodels is a design-build remodeling firm serving North Shore Illinois and nearby communities. The team has completed 500+ projects across bathrooms, kitchens, basements and larger interior remodeling work.
For a project like this, the shower, plumbing, vanity, storage, tile, flooring and finish selections are treated as one connected remodel.
500+
Completed projects
Since 1987
Family-owned remodeling company
3-Year
Workmanship warranty
Licensed
And insured
Curbless shower FAQ
- 500+
- Completed projects
- Since 1987
- Family-owned remodeling company
- 3-Year
- Workmanship warranty
- Licensed
- And insured
Questions Homeowners Ask Before Removing a Tub
These are the questions that matter when the project is specifically a tub-to-curbless-shower conversion.
Will removing the bathtub hurt resale value?
It can matter if this is the only bathtub in the house. Buyers with young children often still want one tub somewhere in the home. If another full bathroom already has a tub, converting the primary bathroom to a larger walk-in shower can be a practical layout choice.
Do curbless showers leak into the rest of the bathroom?
They should not when the floor is recessed correctly, the slope is built toward the drain, and the waterproofing membrane extends past the shower opening. Problems usually come from insufficient pitch, poor drain integration or waterproofing that stops too early.
Can any bathroom be converted to a curbless shower?
Many can, but the floor structure determines how the detail is built. Joist direction and depth affect whether the shower area can be recessed. On a concrete slab, the shower pan may need to be cut into the slab. That is something to verify on site before finalizing the layout.
Is a curbless shower the same as an ADA-compliant shower?
No. A flush entry is only one part of accessible design. ADA compliance depends on measured clearances, turning space, grab-bar locations, seat height and control placement. A curbless shower can improve ease of use without automatically meeting every ADA requirement. Plan your remodel
Planning a Bathroom Remodel in Arlington Heights?
If a large tub is taking up space you would rather use for a walk-in or curbless shower, Delta Remodels can review the room and plan the shower, vanity, storage, flooring and fixtures as one layout.
This is one of our completed Arlington Heights projects. For scope, current investment ranges and the local permit process, see bathroom remodeling in Arlington Heights.
